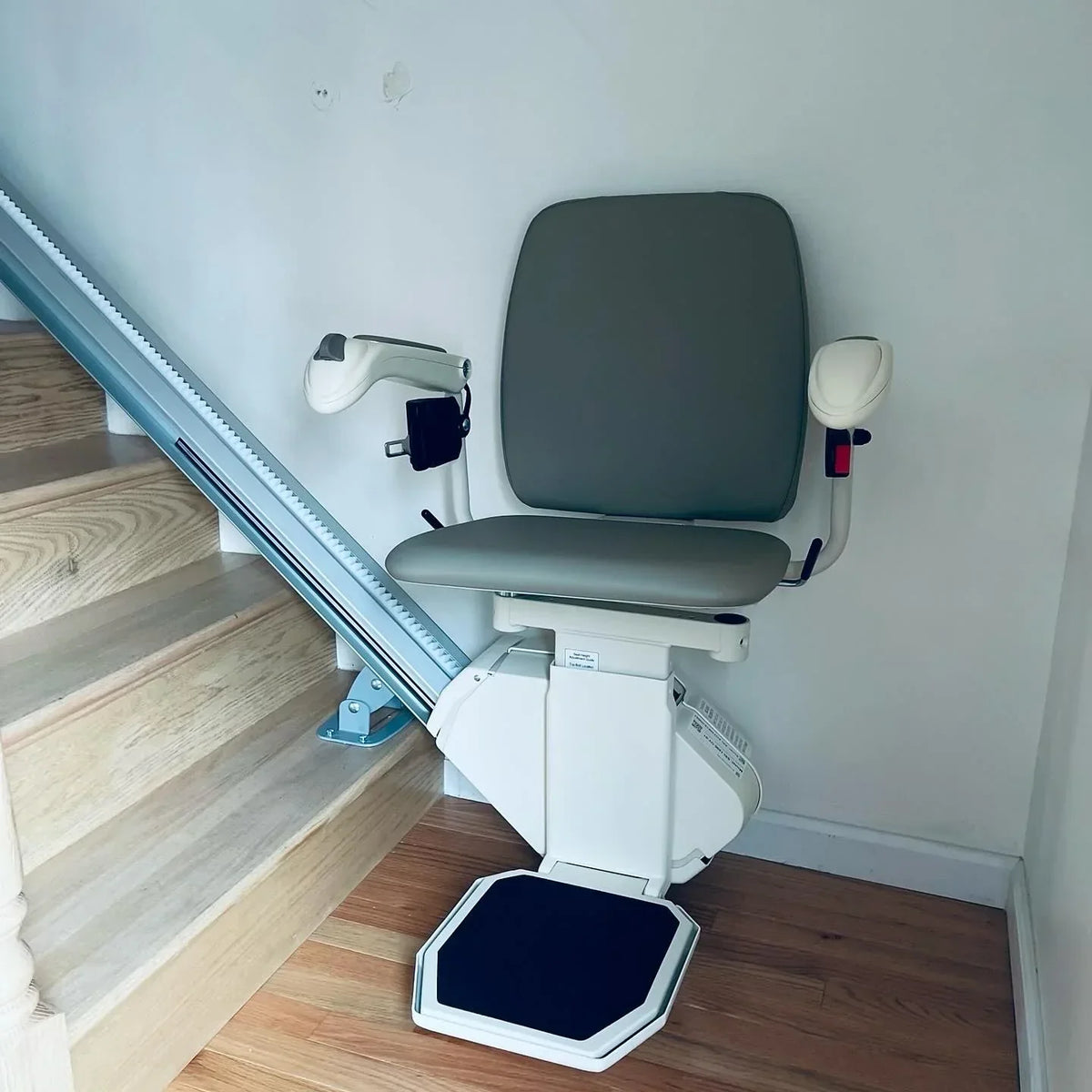

Why the Harmar SL600 Pinnacle Premium Stairlift Stands Out: A Deep Dive into Excellence

March 24 2025, by Richard Spafford, 16 min reading time

The Harmar SL600 Pinnacle Premium Stairlift redefines accessibility with a masterful blend of compact design, robust engineering, and user-centric innovation. Building on the renowned Pinnacle platform, this model—crafted by Harmar, a Missouri-based mobility pioneer since 1998—elevates the stairlift experience with a 350-pound (159 kg) capacity, a wider seat, and an optional folding rail. At USA Medical Supply, we’ve installed hundreds of stairlifts across New England, and the SL600 consistently emerges as a top-tier solution for its ability to transform challenging staircases into safe, welcoming pathways. Here’s an exhaustive exploration of why it’s a standout choice:

Unmatched Space Efficiency and Design: Precision in Every Inch

Compact Folding Mechanism: A Space-Saving Marvel

Folded Dimensions: When parked, the SL600 folds to an industry-leading 10.5 inches (26.7 cm) from the wall—seat up, armrests in, footrest raised—making it slimmer than the Bruno Elan (11.5 inches/29.2 cm) or Acorn 130 (12 inches/30.5 cm). This ultra-narrow profile is achieved without sacrificing stability, a testament to Harmar’s engineering prowess.
Optional Automatic Folding Rail: For staircases ending at tight landings or doorways, the SL600 offers an optional mechanical folding rail (part number varies by supplier, e.g., SL600-FR). This rail extends smoothly as the lift descends and retracts to a 2-inch (5 cm) profile when parked at the top or bottom. Unlike fixed rails protruding 12-18 inches (30-46 cm) on models like the Acorn 130, this feature eliminates obstructions—crucial in homes where every inch counts.
Operational Mechanics: The folding rail operates via a cam-and-lever system synced to the chair’s movement (Owner’s Manual, p. 3). No motors or batteries power it, ensuring reliability even during outages—a stark contrast to motorized folding rails (e.g., Bruno SRE-3050) that risk electronic failure.

Tailored for Tight Spaces: Real-World Adaptability

Slim Rail Design: The anodized aluminum track stands just 3 inches (7.6 cm) high and mounts 1-2 inches (2.5-5 cm) from the wall, preserving stair width. We’ve installed SL600s on staircases as narrow as 28 inches (71 cm)—below the 36-inch (91 cm) ADA minimum for wheelchair turns—where bulkier models like the Stannah 600 (15-inch folded width) or Savaria K2 (13.5 inches) demanded costly wall adjustments.
Case Study: In a 1920s colonial in Springfield, MA, a staircase ended 14 inches (35.6 cm) from the front door. The SL600 with folding rail cleared the path, avoiding a $4,500 doorway relocation required by a fixed-rail Bruno Elan. This adaptability shines in older homes with quirky layouts—think narrow halls, corner landings, or stairs abutting living spaces.

Practical Measurements

Unfolded Footprint: 24 inches (61 cm) from the wall with seat down, arms out, and footrest lowered—still compact for active use.
Rail Clearance: Requires just 12”x12” (30 x 30 cm) at the base with the folding rail, compared to 18-24 inches (46-61 cm) for fixed alternatives (Sell Sheet, Harmar).

Robust Construction and Longevity: Built to Endure

Weight Capacity and Structural Integrity

Capacity: Rated at 350 pounds (159 kg), the SL600 accommodates a wide user range—outpacing the Acorn 130 (275 lbs/125 kg) and surpassing the SL300 or Bruno Elan (300 lbs/136 kg) with added comfort. Harmar’s testing ensures it handles dynamic loads (e.g., shifting weight during swivels) without strain.
Materials:
- Rail: Aircraft-grade aluminum, anodized for rust resistance, withstands New England’s freeze-thaw cycles (-20°F to 100°F/-29°C to 38°C with optional cold-weather package).
- Chassis: Powder-coated steel resists dents and corrosion, paired with a UV-stabilized nylon polymer gear rack.
- Seat: Upholstery-grade vinyl (beige standard) or optional fabric (gray, brown), reinforced with steel framing and 2-inch foam padding—durable against wear from daily use or humidity.

Patented Drive System: Engineering Mastery

Helical Worm Gear: The SL600’s heart is Harmar’s patented drive (US Patent 7,360,816), a steel worm gear meshed with a nylon polymer rack. Unlike chain or belt systems (e.g., Stannah 600, Acorn 130), it requires no grease or oil, eliminating mess and maintenance hassles. Noise levels hover at 40-45 dBA—20 decibels quieter than chain-driven lifts (Sell Sheet, Mobility Masters).
Lifespan: Rated for over 10,000 trips (approximately 10-15 years at 2 trips daily), per Harmar’s lab data. We’ve seen units from 2015 still running smoothly in 2025 with minimal wear—thanks to the gear’s self-lubricating properties.
Torque: Delivers 50 Nm of torque, ensuring steady performance on inclines up to 52°, even with maximum load.

Stress-Tested Durability

Environmental Resilience: The anodized rail resists salt air (coastal homes) and humidity (basement stairs), while the chassis shrugs off minor bumps from canes or walkers—a common concern with flimsier plastic frames.

Power Efficiency and Reliability: Always Ready

Battery Performance: Outage-Proof Design

Power Source: Two sealed 12V, 7Ah lead-acid batteries (24V DC total) power up to 60 trips (30 up/down cycles) on a 15.5-foot (4.7 m) track during outages—double the Bruno Elan (25 trips) and quadruple the Acorn 130 (15 trips). A 10-foot (3 m) cord connects to a 120-240 VAC charger, mounted discreetly under the stairs or near an outlet.
Charging: Fully charges in 4-6 hours; a trickle-charge system prevents overcharging (Owner’s Manual, p. 4). After 20 trips, the LED shifts to amber—our techs recommend plugging in overnight for peak readiness.
Cold Weather: Operates down to 0°F (-18°C); an optional heater kit extends this to -20°F (-29°C), vital for unheated stairwells.

Energy Efficiency

Standby Draw: Just 0.5 amps (approximately 4 kWh/year), costing $4-$6 annually at 12 cents/kWh—greener than the Stannah 600 (0.8 amps) or Savaria K2 (0.6 amps).
Active Use: Peaks at 2.5 amps during motion, minimizing strain on household circuits.

Diagnostics: Smart and Simple

LED Codes: The armrest LED glows green (normal), amber (low battery or minor fault), or red (service needed), paired with beeps (e.g., 2 beeps/second for off-charge; Owner’s Manual, p. 6). A flip-up diagnostic panel reveals detailed codes (e.g., “E1” for battery fault).
Reset: Cycling the chassis ON/OFF switch resolves 80% of minor issues—e.g., sensor trips from a bumped footrest—without a technician.

Seamless Accessibility and Safety: Comfort Meets Security

Ride Quality: Smooth and Gentle

Speed: Travels at 20 feet per minute (6.1 m/min), adjustable to 18 fpm on steeper inclines (via technician programming). The helical gear’s soft start/stop eliminates jolts—unlike belt-driven lifts (e.g., Acorn 130) with abrupt transitions—reducing strain on hips, knees, or backs.
Incline Range: Handles 27°-52° (up to 45° standard; 45°-52° may need local code approval), covering most residential stairs (average 32°-38°).

Seat Comfort: Designed for the User

Dimensions: 19”W x 16”D x 18”H (48 x 41 x 46 cm)—wider and taller than the SL300’s 16-inch backrest—offering lumbar support and room for broader frames. The 2-inch foam padding (density: 1.8 lbs/ft³) balances firmness and cushioning.
Upgrades: Optional 21-inch (53 cm) wide seat or premium 3-inch padding for larger users or those needing extra comfort (e.g., post-surgical recovery).
Swivel: Manual 85° swivel at the top (left or right landing) via a side lever; an optional powered swivel (part #SL600-PSW) reduces effort for limited mobility.

Safety Suite: Comprehensive Protection

Obstruction Sensors: Five sensors (two on the footrest, three on the chassis) halt the lift within 0.5 seconds of contact, emitting a 3-beep alert (Owner’s Manual, p. 5). Sensitivity detects objects as small as a child’s toy.
Swivel Interlock: The seat locks at 0° (riding) or 85° (dismount), preventing motion unless aligned—safer than non-interlocked designs prone to tipping.
Seatbelt: A retractable 3-point harness (24-40 inches/61-101 cm) clips across the chest and lap, with a quick-release buckle. Optional extensions reach 60 inches (152 cm).
Overspeed Governor: Caps descent at 25 fpm, engaging a brake if exceeded (e.g., on steep stairs).
Emergency Stop: A red button on the armrest halts all motion instantly—ideal for sudden discomfort or pet interference.
Key Lock: Optional (part #SL600-KL) disables controls, preventing unauthorized use by children or guests.

Footrest: Practical and Stable

Size: 12.3”W x 13.2”D (31 x 34 cm)—larger than the Bruno Elan’s 11”x11” (28 x 28 cm)—accommodates boots, braces, or swollen feet. Folds up to a 5-inch (12.7 cm) profile when parked.
Weight Capacity: Rated for 100 lbs (45 kg) direct pressure, ensuring stability during mounting.

Installation and Operational Ease: Hassle-Free Integration

Setup Process: Precision Installation

Mounting: The rail secures to stair treads with 5/16” lag bolts (4-6 per 15.5-ft track), spaced 30-36 inches (76-91 cm) apart. No wall drilling—just a firm tread base (minimum 1-inch thick wood or concrete with adapters).
Time: Standard 15.5-ft (4.7 m) installs take 3-5 hours; custom tracks (16-70 ft/4.9-21.3 m) need 6-8 hours. Tools: cordless drill, bubble level, 25 ft tape, torque wrench (20 ft-lbs).
Site Specs: Requires 28-inch (71 cm) stair width, 30-inch (76 cm) top landing depth, and 12”x12” (30 x 30 cm) base clearance with folding rail. We use a digital inclinometer (e.g., Bosch GLM 20) for 27°-52° accuracy.

Controls: Intuitive Operation

Joystick: A weatherproof toggle (0.2 lbs force) on the armrest (left or right configurable) moves the lift with a gentle press—perfect for arthritis or tremor sufferers. Hold to travel; release to stop.
Remotes: Two infrared call/send remotes (50-ft/15 m line-of-sight range) feature large buttons (0.75” diameter) and clip-on holders—summon the lift from upstairs or down (Owner’s Manual, p. 5).
Indicator Lights: Green for “go,” amber for “charge soon,” red for “check me”—a glance confirms status.

Portability: Future-Proof Flexibility

Disassembly: Unbolts in 4-6 hours with basic tools (Phillips screwdriver, 1/2” wrench), allowing reinstallation in a new home—unlike welded or permanent lifts (e.g., older ThyssenKrupp models).

Aesthetic Integration: Blending with Your Home

Design Choices

Upholstery: Standard beige vinyl resists stains and fading; optional gray or brown fabric (polyester blend) adds warmth or modernity. Custom colors available via special order (lead time: 2-3 weeks).
Rail Finish: Anodized aluminum in satin silver complements oak, pine, or carpeted stairs—less obtrusive than painted steel rails (e.g., Acorn 130’s white).
Parked Profile: With seat, arms, and footrest folded (and optional rail retracted), the SL600 hugs the wall at 10.5 inches (26.7 cm)—preserving your staircase’s charm, unlike bulky fixed-rail setups dominating sightlines.

Visual Harmony

Example: In a Victorian home in Hartford, CT, the beige SL600 blended with cream walls and walnut stairs, its folded form nearly invisible from the foyer—unlike a Stannah 600’s protruding rail clashing with the decor.

The Critical Role of the SL600’s Design: Solving Real Challenges

Space and Safety Optimization

Trip Hazard Elimination: Fixed rails (12-18 inches/30-46 cm) on models like the Acorn 130 or Bruno Elan risk falls in high-traffic zones. The SL600’s optional folding rail retracts to 2 inches (5 cm), clearing paths—a lifesaver in homes with kids, pets, or caregivers (Sell Sheet, Harmar).
Narrow Landings: For landings under 36 inches (91 cm) wide, the SL600 ensures wheelchair or walker access without $5,000+ reconfigurations—unlike fixed-rail peers requiring custom carpentry.

Engineering Superiority

Grease-Free Drive: The helical worm gear’s lubricant-free operation outlasts greased chains (e.g., Stannah 600) prone to gumming up with dust or pet hair. No annual oiling—ever—means cleaner stairs and fewer service calls.
Battery Edge: 60 trips in an outage (vs. Bruno’s 25 or Acorn’s 15) ensures access during storms—a must for rural New England where power cuts can last days.

User-Centric Focus

Wider Seat: The 19-inch width (21-inch option) and 18-inch backrest cater to taller or broader users, unlike the SL300’s narrower frame—comfort that matters for long-term use.

Why We Champion the SL600: A Proven Performer

After fitting stairlifts from Harmar, Bruno, Acorn, and Stannah across hundreds of homes, the SL600 shines. Its 350-pound capacity and 60-trip battery eclipse the Acorn 130 (275 lbs, 15 trips) and Bruno Elan (300 lbs, 25 trips), while the wider seat and grease-free drive outclass the SL300 or Stannah 600 for comfort and upkeep. The optional folding rail solves spatial woes fixed-rail models can’t touch, and its mechanical simplicity beats motorized alternatives for longevity. We’ve seen it turn steep, cramped staircases into safe, effortless routes—restoring independence with precision and durability.

Technical Specifications: The Full Picture

Weight Capacity: 350 lbs (159 kg)
Speed: 20 fpm (6.1 m/min); adjustable to 18 fpm (technician-set)
Folded Width: 10.5 in (26.7 cm); 13.6 in (34.5 cm) with folding rail
Track Length: 15.5 ft (4.7 m) standard; 16-70 ft (4.9-21.3 m) custom (two 35-ft rails joined)
Incline Range: 27°-52° (45°+ may need code approval per IBC 2018)
Seat: 19”W x 16”D x 18”H (48 x 41 x 46 cm); optional 21”W x 17”D
Footrest: 12.3”W x 13.2”D (31 x 34 cm), foldable, 100 lbs capacity
Power: 24V DC (2 x 12V, 7Ah SLA batteries), 120-240 VAC charger (10-ft cord)
Operating Range: 0°F to 100°F (-18°C to 38°C); cold-weather kit to -20°F (-29°C)
Safety Features: 5 obstruction sensors, 85° swivel interlock, 3-point seatbelt (24-40 in), overspeed governor (25 fpm max), emergency stop, optional key lock
Weight: Unit: 90 lbs (41 kg); Rail: 5 lbs/ft (7.5 kg/m)
Warranty: 3 years parts, 10 years gear rack, 1 year batteries (USA Medical Supply adds service extensions)

Installation and Maintenance Insights: From Setup to Daily Use

Setup: Expert Precision

Process: The rail bolts to treads (minimum 1” thick hardwood or concrete with adapters) 1-2 inches (2.5-5 cm) from the wall, using 5/16” x 2.5” lag screws torqued to 20 ft-lbs. Folding rail aligns for a 12”x12” (30 x 30 cm) landing. We measure inclines with a Bosch GLM 20 (±0.2° accuracy).
Time: 3-5 hours (15.5 ft); 6-8 hours (custom >20 ft). Crew: 2 techs with drill, level, and wiring kit.
Prep: Clear stairs of rugs or clutter; ensure 28” width, 30” top depth, 7” (18 cm) tread depth.

Daily Use: Effortless Operation

Starting: Flip the chassis switch (under seat) to ON; press the joystick (0.2 lbs force) to move. Swivel manually at the top (lever requires 2 lbs force) or upgrade to powered (0.5 lbs).
Parking: Fold seat, arms, and footrest; rail retracts automatically. Charge overnight after 30 trips (LED turns amber).
Caution: Keep pets/kids clear of the rail path (5-inch/12.7 cm swing radius); avoid wet shoes on the footrest to prevent slips.

Maintenance: Minimal Effort

Cleaning: Dust rail with a microfiber cloth; wipe seat with mild soap and water (no bleach—damages vinyl). Gear rack needs no lubrication—ever (Owner’s Manual, p. 7).
Checks:
- Monthly: LED status (green = 80-100% charge); test seatbelt retraction.
- Yearly: Tighten bolts (20 ft-lbs), test sensors with a soft object (e.g., pillow), inspect rail for dents. Our $99 tune-up covers this.
Battery: 1-2 years lifespan (300-500 cycles); replacements ($50-$70) swap in 10 minutes with a screwdriver.

Troubleshooting: Quick Fixes

Won’t Move: Check battery (plug in if red); clear sensors (e.g., shoe on footrest). Reset via ON/OFF switch.
Beeping: 2 beeps/sec = off-charge (move to station); 3 beeps = obstruction (clear path). Persistent issues? Call us.
Slow Speed: Low battery or rail debris; recharge and brush off with a dry cloth.

How USA Medical Supply Brings the SL600 to You: Full-Service Excellence

From our 6,500 sq ft hub at 1779 Riverdale St, West Springfield, MA 01089, we deliver a seamless experience:

Contact Us

Phone: 413-733-7843; Text: 413-200-4191. Hours: Mon-Fri, 9 AM-6 PM; Sat by appointment. Response within 24 hours.

Free In-Home Assessment

Coverage: Hampden, Hampshire, Berkshire, Hartford counties (50-mile radius).
Process: 75-90 minutes—measure stairs (width, length, incline), landing clearance (12”x12” minimum with rail), user needs (height, weight, mobility aids). We demo the SL600 with a mock rail and test seat comfort—zero obligation.

Tailored Proposal

Quote: $3,800-$6,000 installed (15.5 ft); $100/ft beyond. Includes 3D stair rendering (via CAD software), financing (0% APR for 12 months), or rent-to-own ($220/month, 100% credit after 3 months).
Options: Folding rail (+$500), powered swivel (+$300), cold-weather kit (+$150).

Expert Installation

Timeline: 1 day (standard); 2 days (custom >20 ft). Two techs secure the rail, wire the charger (15A circuit), and test all features—joystick, sensors, rail fold. Hands-on training covers operation and folding (30 minutes).
Cleanup: We remove debris, leaving your stairs pristine.

Lifelong Support

Follow-Up: Free 30-day check (fit, comfort, battery). Repairs: 24/7 line; parts stocked locally—rails, batteries, gears (New England’s largest inventory). Tune-Ups: $99/year—bolts, sensors, diagnostics.

Who Benefits Most?

Space-Challenged Homes: Stairs near doors, tight hallways, or landings under 36” wide.
Comfort Seekers: Users needing a wider, taller seat with a smooth, jolt-free ride.
Reliability Needs: Those in outage-prone areas wanting 60-trip backup and no-maintenance gears.
Safety Priorities: Multi-user homes with kids, pets, or elderly needing clear walkways.

Contact USA Medical Supply Today

Unlock your home’s potential with the Harmar SL600 Pinnacle Premium Stairlift. Call 413-733-7843, text 413-200-4191, or visit 1779 Riverdale St, West Springfield, MA 01089. Our free assessments deliver this world-class solution tailored to your stairs—experience why we’re passionate about its transformative power. Independence is within reach—let’s make it yours!
