Key Specs
| Weight capacity | 500 lb |
|---|---|
| Drive range | 16.0 miles |
| Top speed | 6.0 mph |
| Product weight | 225.5 lbs |
| Turning radius | 51 in |
| Seat width | 22", 20" |
| Drive type | Rear-Wheel |
| Ground Clearnace to Center Deck | 6.25″ |
| Ground Clearance to Transaxle/Motor | 3.75″ |
| Type Batteries | 2-NF22 |
| Colors | Blue, Grey, Red |
| Freewheel Mode | Yes |
| Electronic Speed Control | Yes |
| Electro-Mechanical Brakes | Yes |
| Charger | Portable 8 Amp Off Board |
| Controller | 120 Amp |
| Length | 48″ |
| Width | 30.5″ |
| Ground to Top of Seat | 24.5” – 27.5” |
| Ground to Top of Deck | 8” |
| Deck to Top of Seat | 16.5” – 19.5” |
| Number Seat Height Positions | 4 |
| Size of Increments | 1” |
| Front Axle to Rear Axle | 36” |
| Weight of Unit (assembled) | 225.5 lbs |
| Tires (standard) | Flat Free / Non Marking Solid |
| Front Tires | 10.75″ |
| Rear Tires | 10.75″ |

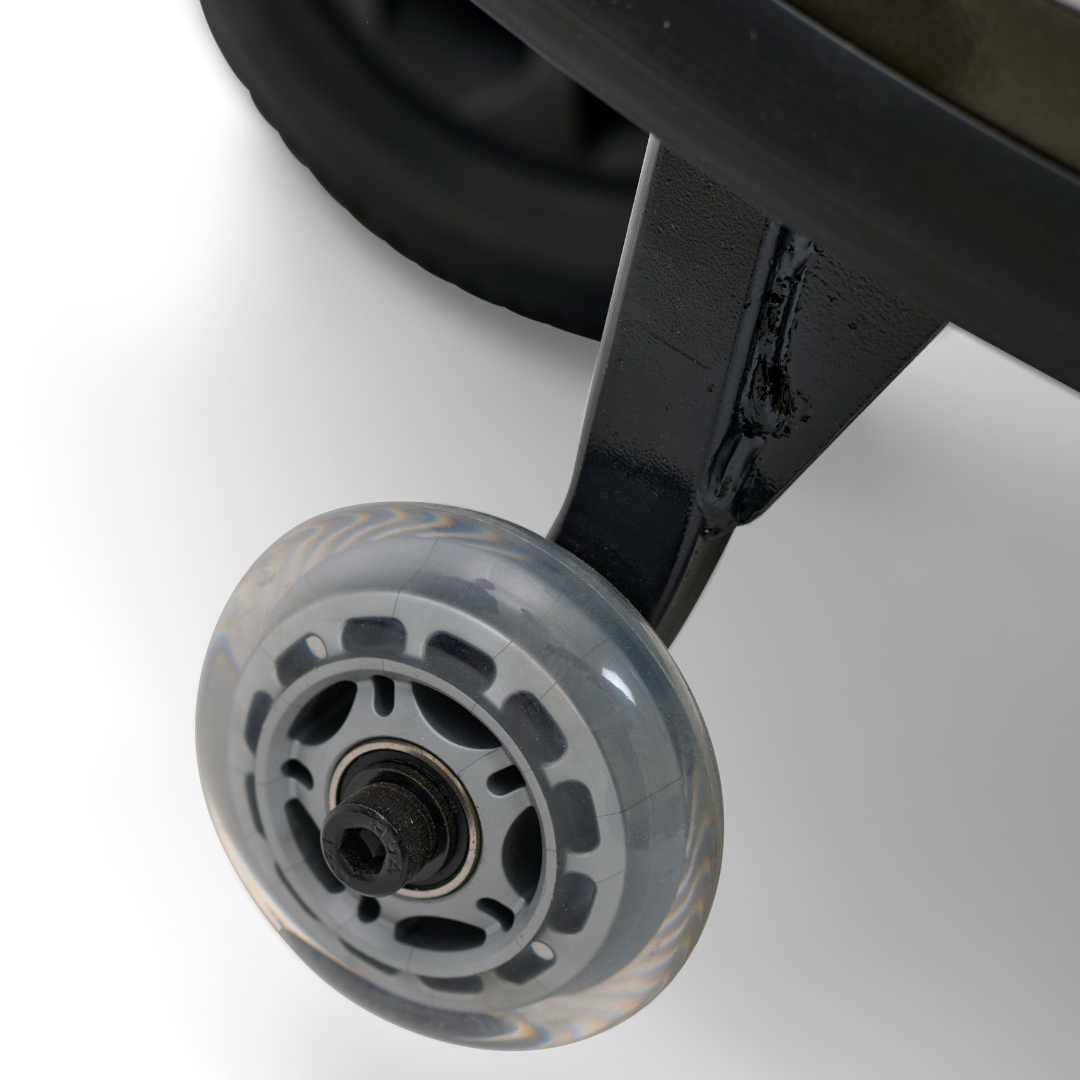

| Front & Rear Anti-Tippers | 3″ |

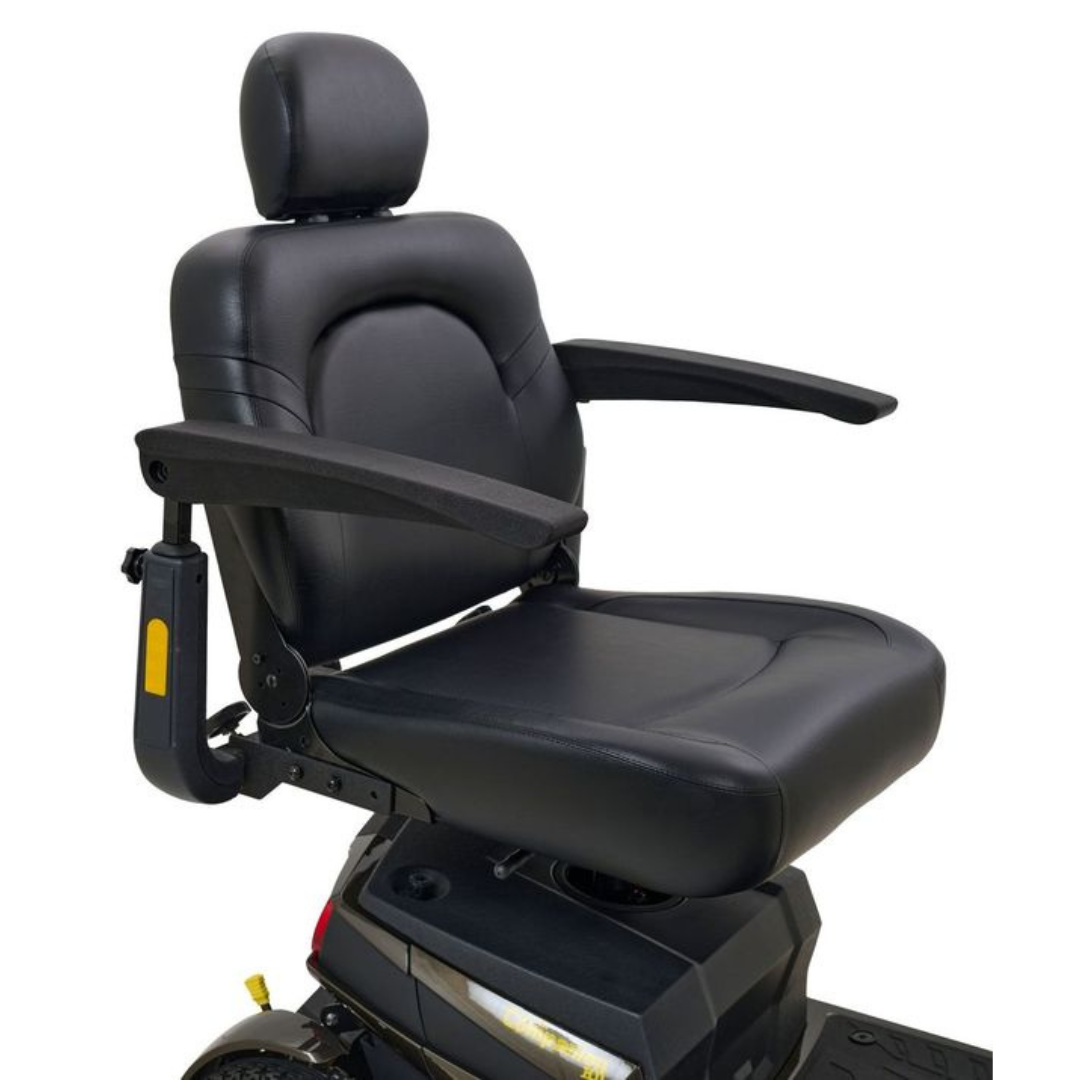

| Standard Seat | Extra Wide High Back |
| Seat Back Height – no headrest | 18″ |
| Seat Width x Depth | 22” x 20” |
| Seat Color | Black |
| Seat Rotation | 90 Degree either direction 360 Degrees |
| Optional Seat | Captain’s Chair |
| Optional Seat Back Height – no headrest | 18″ |
| Optional Seat Width x Depth | 20” x 20” |
| Optional Seat Color | Black |
| Power Elevating Seat – 6” with Lockout | Yes |
Overview

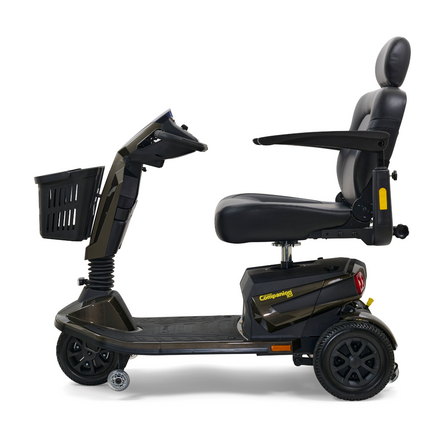

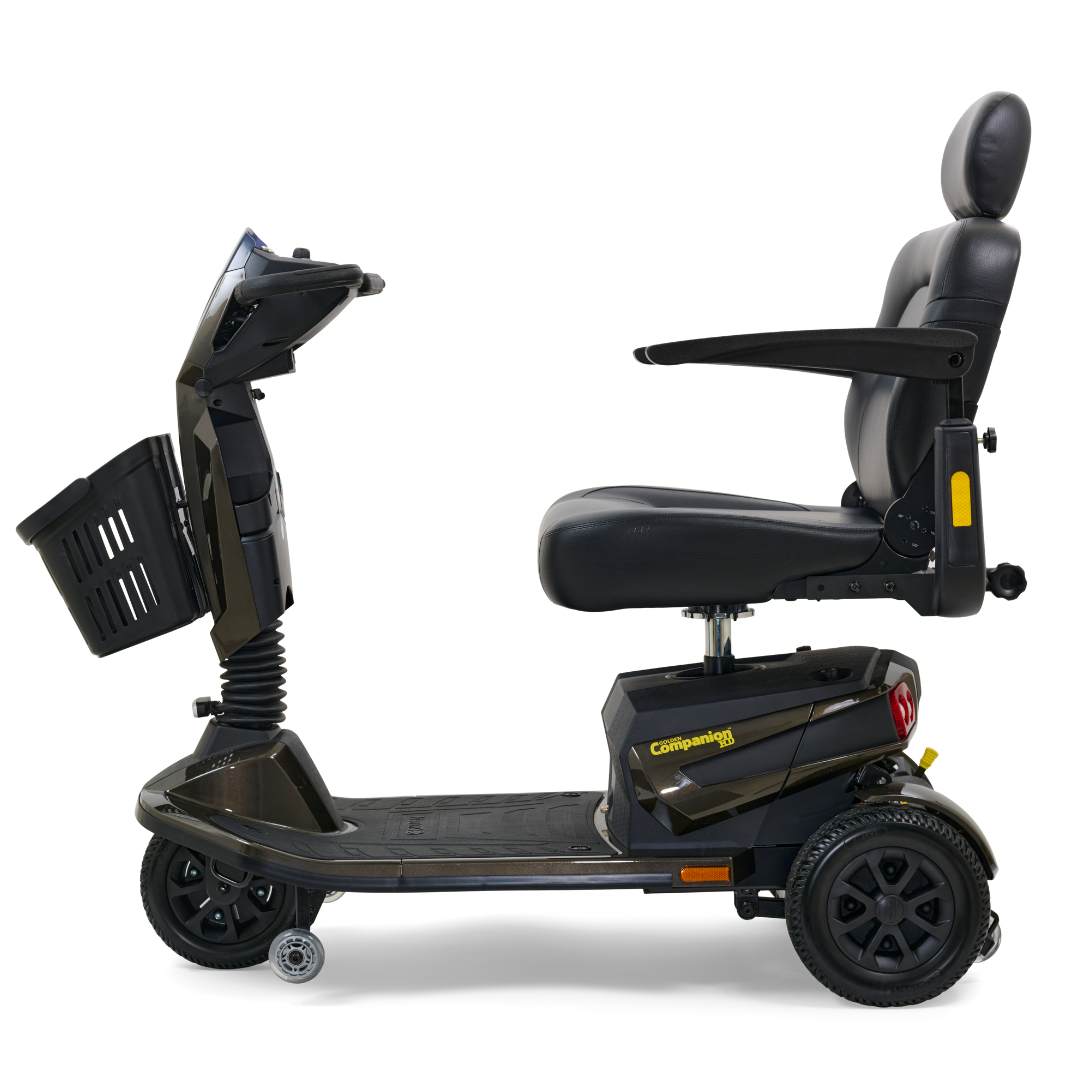

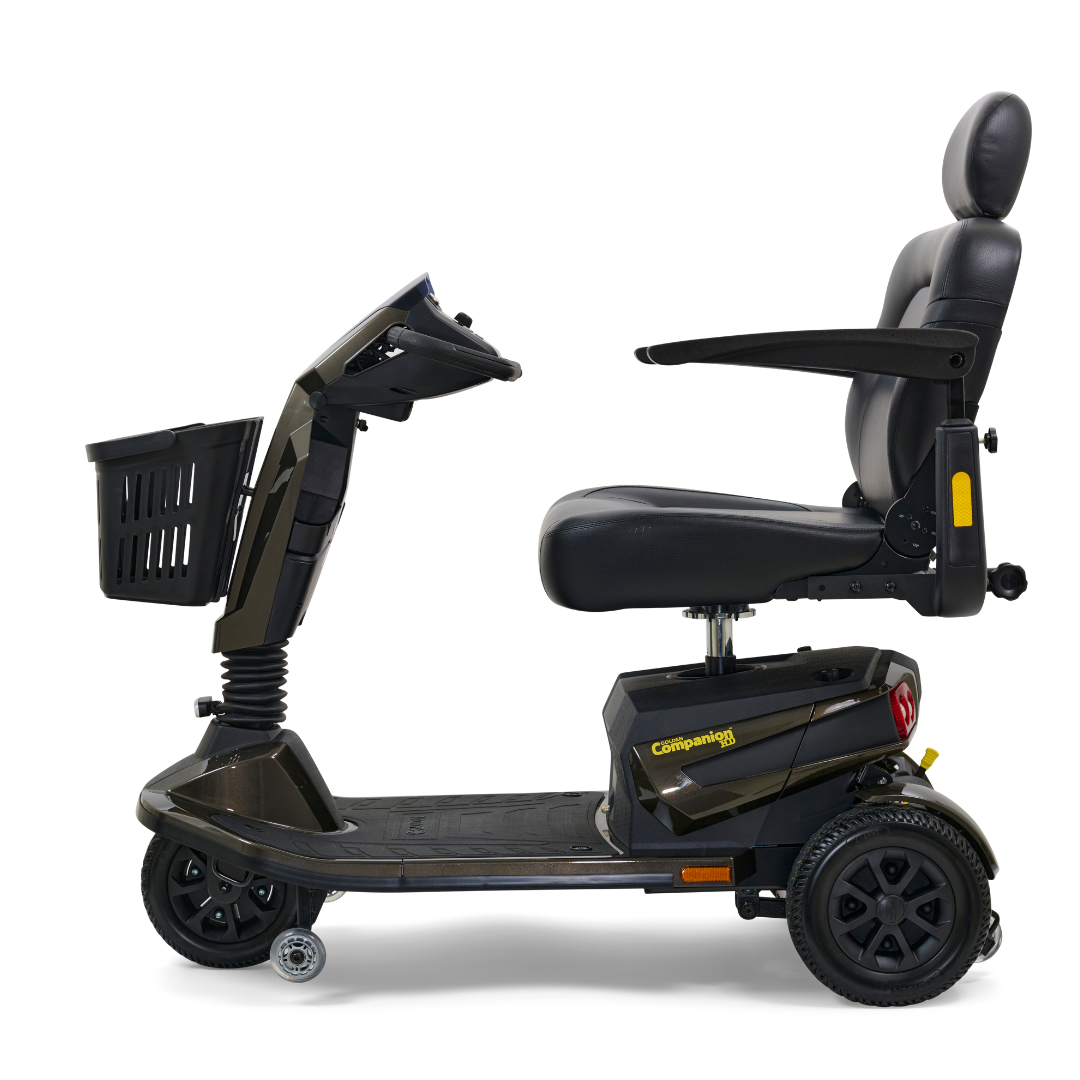

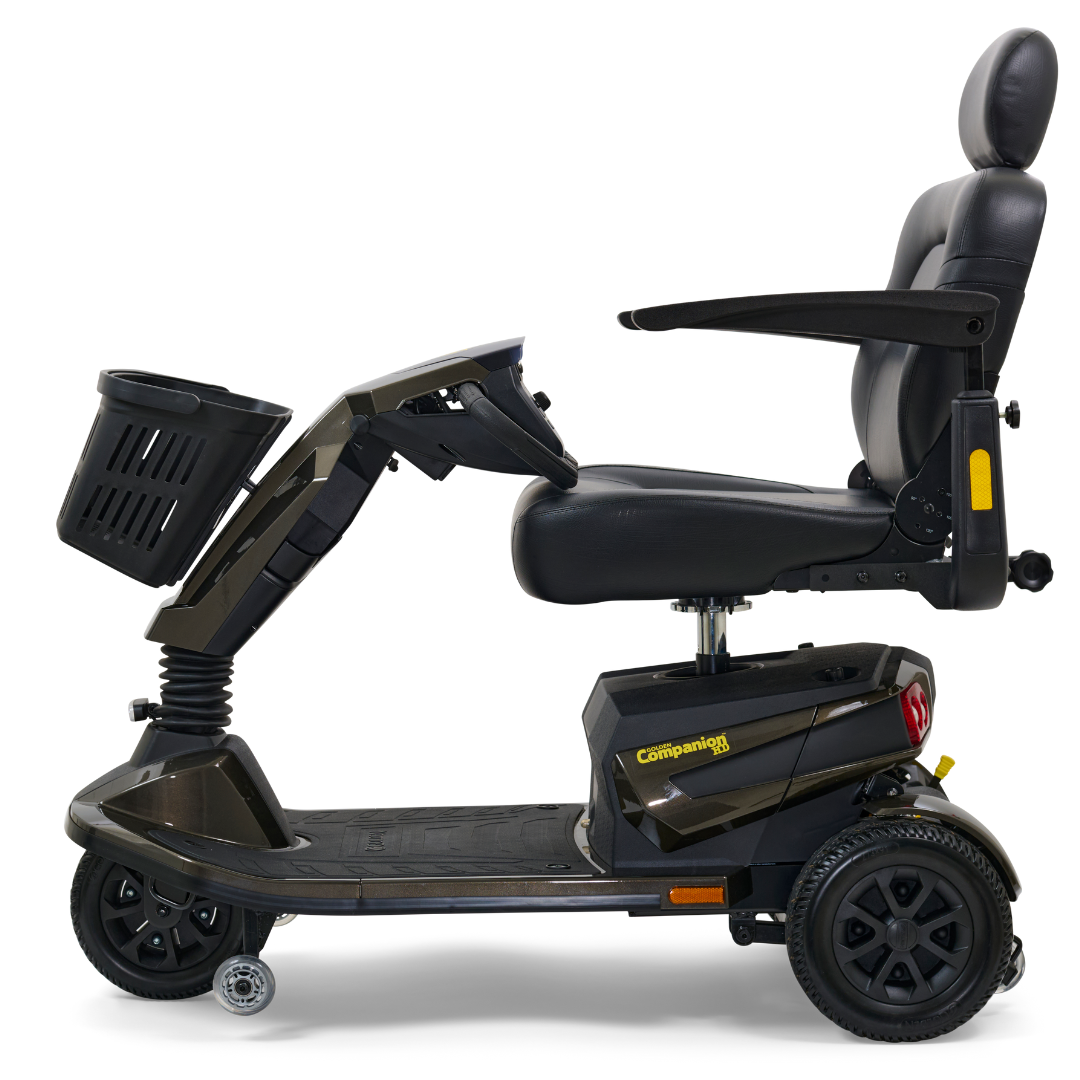

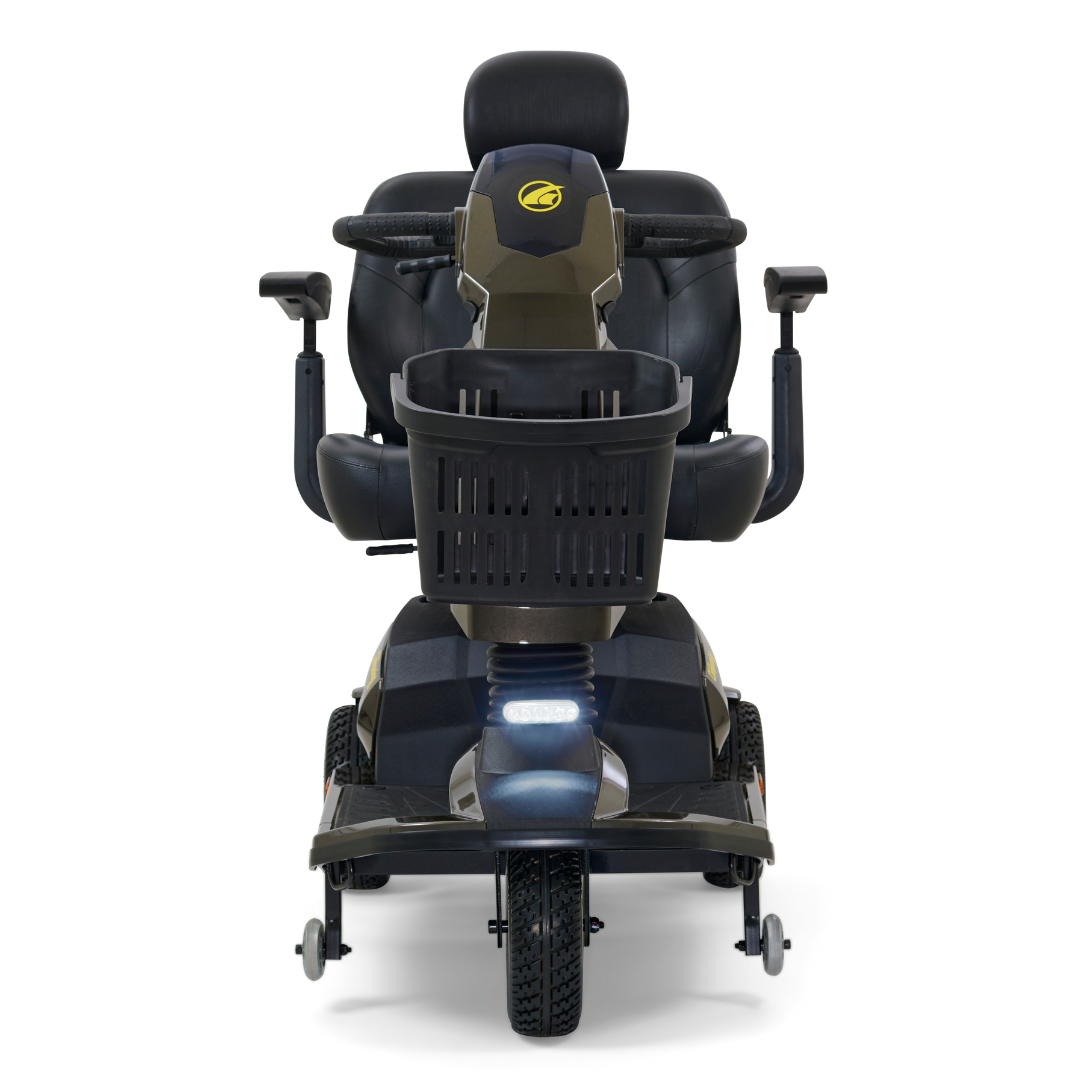

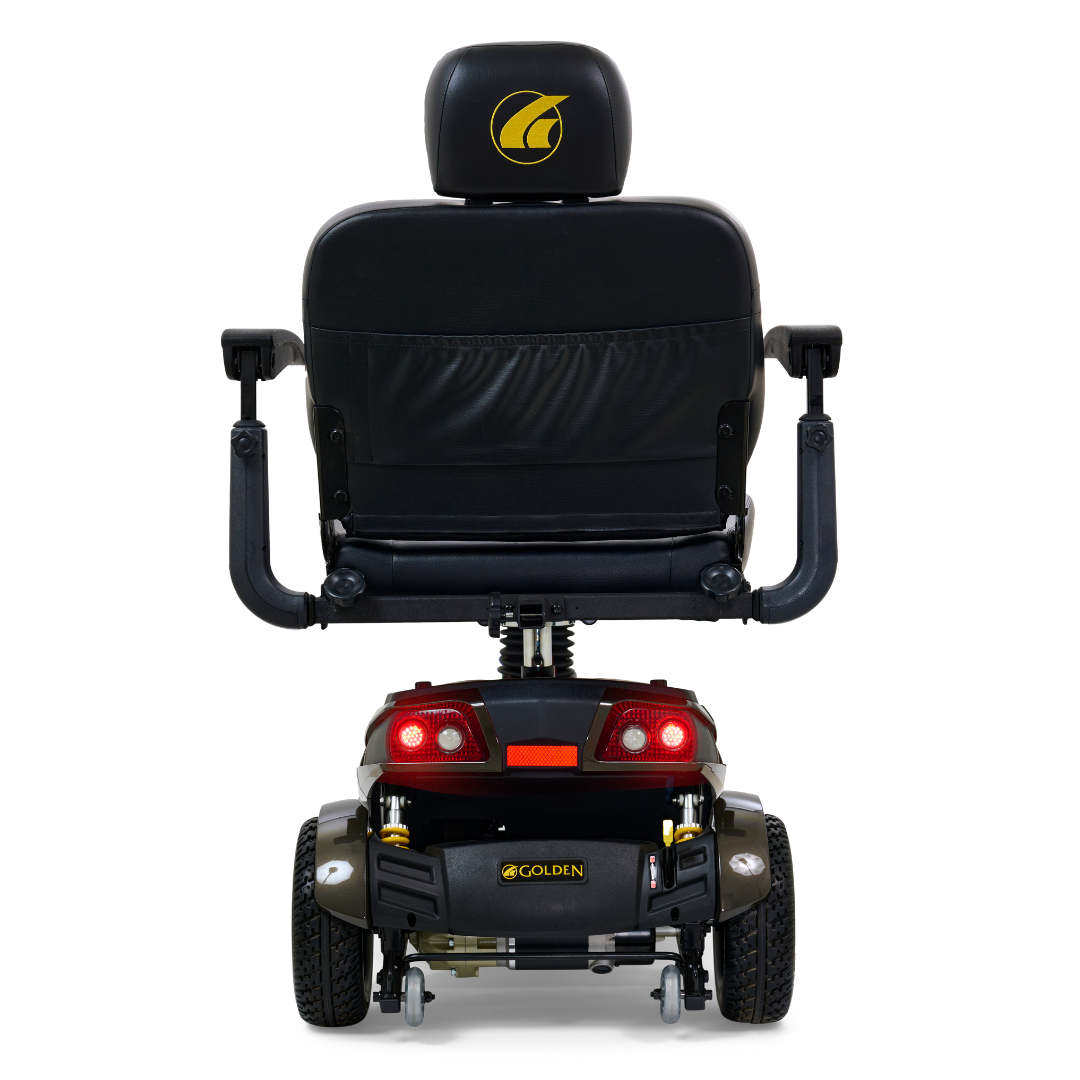

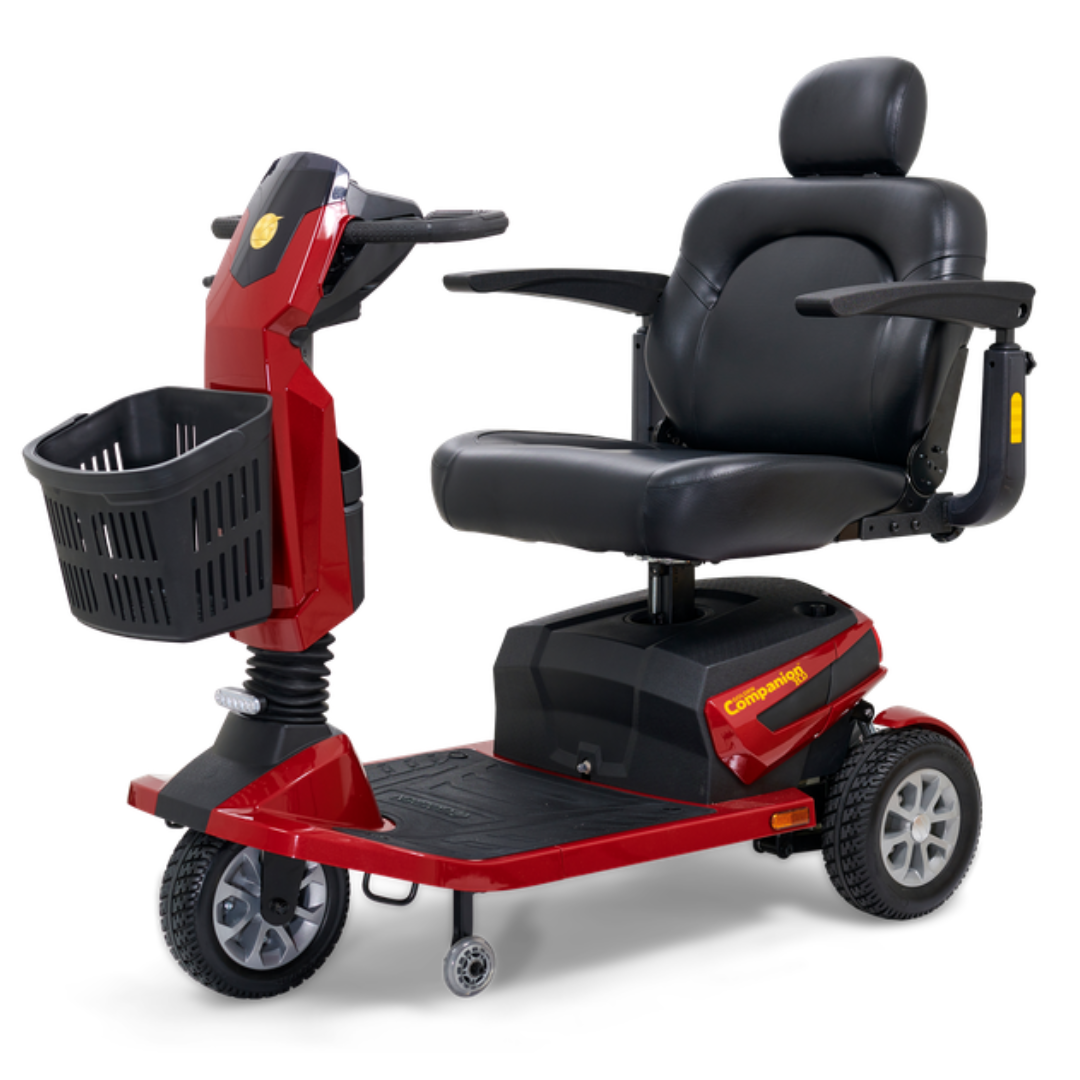

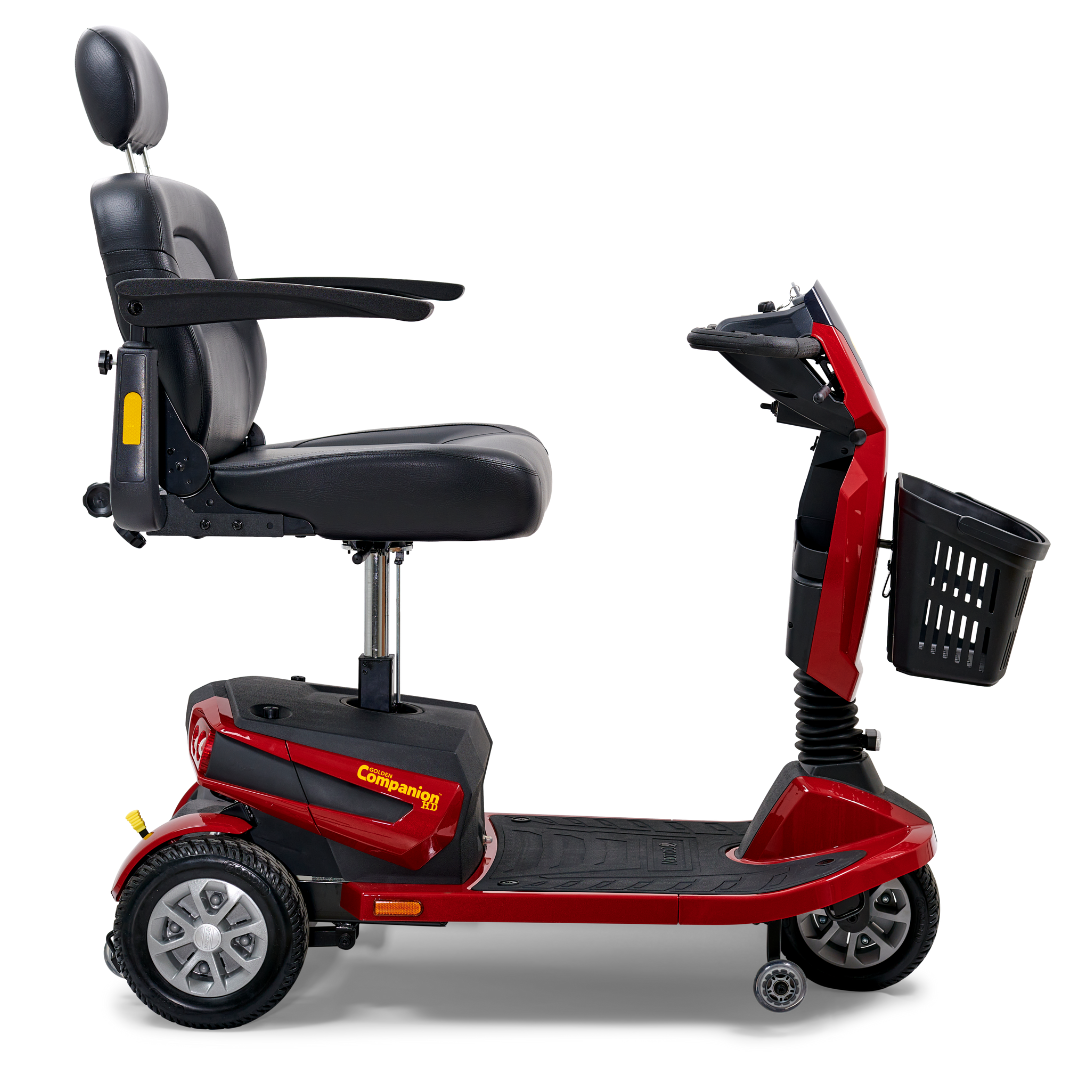

The Golden Companion HD (GC540) is the heavy-duty 3-wheel Companion, with a 500 lb. weight capacity and batteries included. It is for riders who like the Companion design but need more capacity than the 400 lb. full-size models.
Comfort and everyday use
A 500 lb. capacity in a 3-wheel Companion layout gives you heavy-duty capability without automatically moving to a large 4-wheel outdoor scooter. Batteries are included on this configuration.
- Heavy-duty 3-wheel Companion, 500 lb. capacity, batteries included
- A capacity step up from the GC340 and GC440
- Still in the Companion family for everyday community use
Positions and technology
This is a 3-wheel HD scooter, not the 4-wheel Avenger or Eagle. If you need four wheels at 500 lb., or more off-pavement capability, we will compare those models.
Sizes, fabrics, and who it is for
The GC540 is for a rider who needs a 500 lb. 3-wheel Companion. Sit in it and also look at the Avenger or Eagle if outdoor terrain is a regular part of your day.
Specifications
| Weight Capacity | 500 lbs |
|---|---|
| Warranty Electrical Parts | 2 years |
Available Configurations
| SKU | Size | Configuration |
|---|---|---|
| GC540 | Standard | Standard |

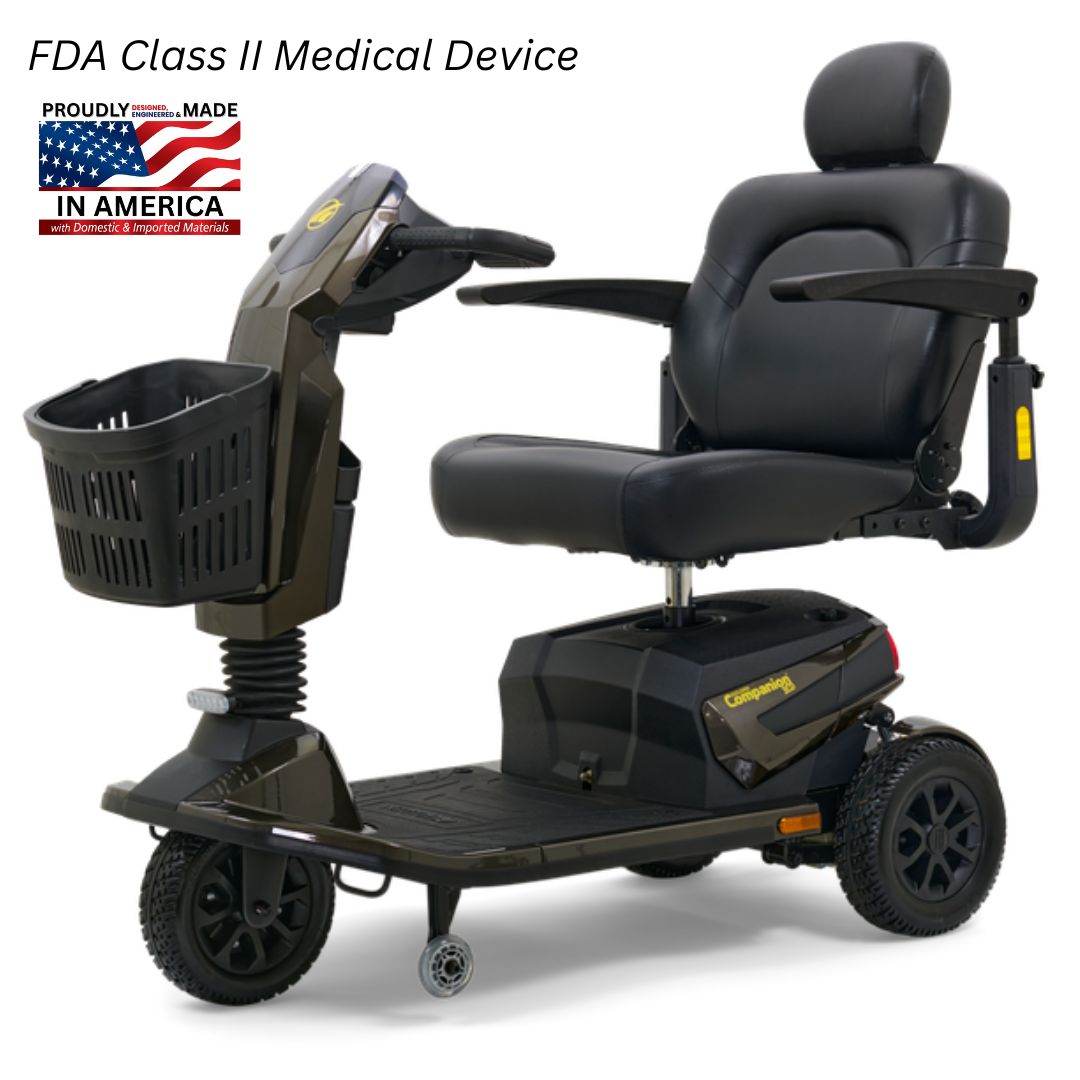

Golden Technologies identifies this product as a Class II medical device, intended to assist people with chronic physical disablements.
Product details and photography are based on Golden Technologies resources and current model information. Sit in the chair or try the unit in our showroom to confirm the latest fabrics, sizes, and options.
See this Golden Technologies scooter at USA Medical Supply, 1779 Riverdale Street, West Springfield, MA. We can walk through size, battery setup, and how it will travel in your vehicle. Visit the showroom or contact us to schedule a time.
Warranty
Drive Train: 2 Years
Electronics: 2 Years
Batteries: 1 Year
